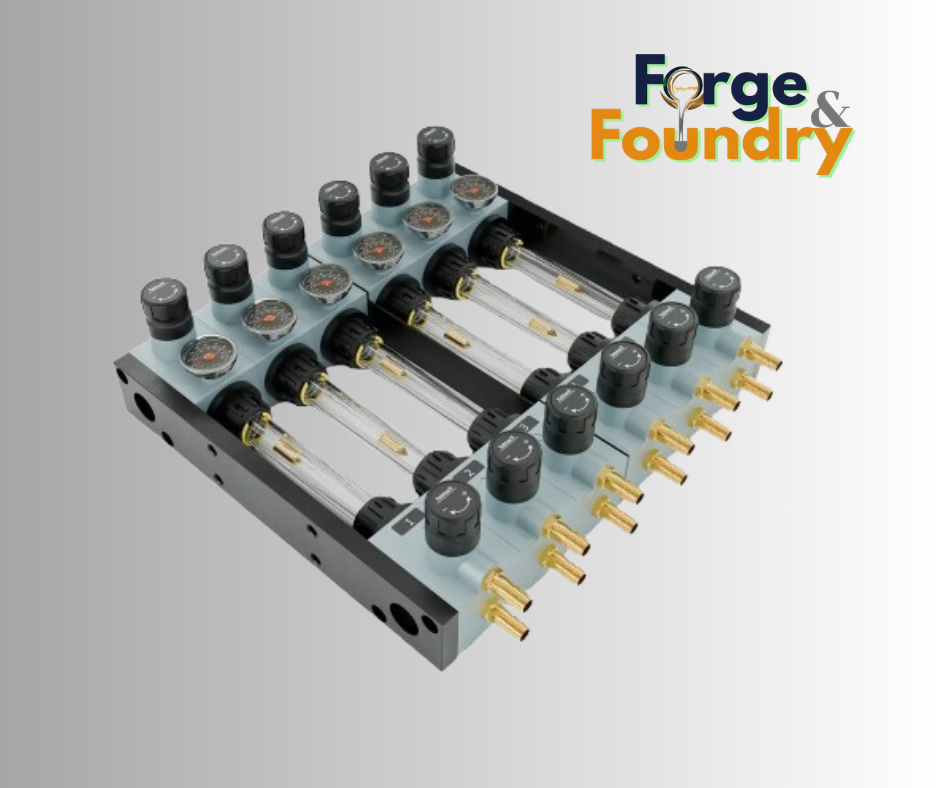

A mould channel water flow meter is a crucial instrument used in die casting and plastic injection moulding industries to monitor and control the flow of cooling water through the intricate channels within the mould. These channels are designed to precisely regulate the temperature of the mould, which is paramount for controlling the solidification rate of molten metal or plastic, and ultimately, the quality of the final part. The flow meter provides real-time data on the volumetric flow rate of the coolant, allowing operators to ensure consistent and optimized cooling across all sections of the mould. Without accurate flow monitoring, uneven cooling can lead to significant issues like warpage, shrinkage, internal stresses, and prolonged cycle times.
The precise control afforded by mould channel water flow meters directly translates into numerous operational benefits. By maintaining consistent and ideal cooling temperatures, these devices help to achieve uniform part dimensions, superior surface finishes, and reduced internal defects. Furthermore, optimized cooling cycles, enabled by accurate flow measurement, can significantly shorten overall production times, leading to increased output and profitability. The ability to detect and correct deviations in flow quickly also aids in troubleshooting cooling system issues, extends the lifespan of the mould by preventing thermal fatigue, and ensures a more efficient and reliable manufacturing process.
| Advantage & Benefit | Description |
|---|---|
| Achieves uniform part dimensions | By ensuring consistent and ideal cooling across the mould, the flow meter helps maintain precise dimensions in the finished parts. |
| Results in superior surface finishes | Optimal and even cooling prevents surface imperfections, leading to a smoother and higher-quality aesthetic for the molded or cast components. |
| Reduces internal defects within parts | Consistent cooling minimizes issues like warpage, uneven shrinkage, and internal stresses, which are common causes of defects. |
| Significantly shortens overall production times | Precise temperature control allows for optimized cooling cycles, accelerating the solidification process and reducing cycle times. |
| Increases output and profitability | Faster cycle times combined with reduced scrap rates directly translate into higher production volumes and improved economic returns. |
| Allows for quick detection and correction of flow deviations | Real-time flow data enables operators to identify and rectify cooling problems promptly, preventing extended production issues. |
| Aids in troubleshooting cooling system issues | Accurate flow monitoring provides critical diagnostic information, simplifying the process of identifying and resolving cooling system malfunctions. |
| Extends the lifespan of the mould by preventing thermal fatigue | Consistent and controlled cooling reduces thermal stress on the mould, thereby prolonging its operational life and reducing replacement costs. |
| Ensures a more efficient and reliable manufacturing process | Overall, precise flow management leads to greater stability, predictability, and efficiency in the entire die casting or plastic injection molding operation. |
